To get started

To generate the architecture of a plugin

A shell command has been developed to facilitate the work: createPluginArch.sh

To create a plugin

Read carrefully before starting

  • the routes for each plugin are planned and are included in the complete management of the routes in api/plgnapi.php (see below) and are planned to be managed via controllers in the core/APIControllers path.
  • for the views of the routes are predefined also v2/routes/v2route.php (they are possibly linked to your own controllers core/VIEWControllers).
  • this mechanism guarantees maximum security.
  • it is imperative to follow the fact that each plugin must have a signature which is validated by the crm (see for that the plugin documentation).

You have to use this Script

bash createPluginArch.sh *NameOfPlugin*

This script will create NameOfPlugin in the Plugins directory of the src directory.

1. The architecture is of the form

api/ // internal api management
    plgnapi.php // we must create our own routes here
    (managed by the CRM directly)
core/ // here we can manage all the models
    APIControllers // to define the controller called in plgnapi.php).
    model // example for propel orm
    VIEWControllers // for the views of the v2/routes part
    ...
    // for example
    Service
    views
ident/ // for an access to an external api (optional)
    routes/ // called by the crm directly
    templates/ // called by the route part
locale/
    js/ // js translation code
    textdomain/ // for gettext translation of php code
    index.html
mysql/ // setting up mysql files
    index.html // protection file
    Install.sql // sql script to create the database
                    // called by the plugin manager
    Uninstall.sql // to uninstall the plugin, it's up to you not to forget anything
    upgrade.json // this part allows to manage upgrades (under development)
skin/
    css/ // all css classes called by the crm
    js/ // all the js code called by the crm
v2/ // MVC for views, models and controller : mandatory for dashboard plugin
    routes/ // called by the crm directly
        v2route.php
    templates/
                    // templates
config.json
signatures.json

The signature is created via the tool provided by the CRM : grunt genPluginsSignatures.

2. We can edit it right away: config.json

   {
       "Name": "EventWorkflow",
       "copyrights": "Philippe Logel © EcclesiaCRM Team",
       "version": "1.0",
       "Description": "Plugin to manage your events",
       "infos": "iMathGeo & Softwares",
       "url_infos": "https://www.ecclesiacrm.com",
       "url_docs": "https://",
       "Settings_url": "v2/eventworkflow/settings",
       "Details": "https://url;iframe=true&width=772&height=549",
       "Dependencies": "",
   }
  • This part is crucial for the update system (via the version number)
  • The version number must always be of the form x.y.
  • Dependencies is used when a plugin has to needs to use other js plugin code.

3. Special rights

  • It is possible to set admin rights or not

Creation of a classic plugin

1. Concerning injection into the database in the "plugin" table

In the database Put the plugin, we must set

  • `plgn_Category` will allow to put the entry of the plugin in the menu on the left in the Personal, RGPD, Etc. .... the options are 'Dashboard', 'Personal', 'GDPR', 'Events','MEDIAS','PEOPLE','GROUP', 'SundaySchool', 'Meeting', 'PastoralCare', 'Communication', 'Deposit', 'Funds', 'FreeMenu', 'EDrive', 'Volunteer'
  • a `plgn_Description` description, e.g.: 'Plugin to show the current connected users
  • a version `plgn_version` to e.g. '1.0'
  • the prefix type for the entries `plgn_prefix` to 'jm_'
  • `plgn_position` can take the values 'inside_category_menu', `'after_category_menu'` (very clear).

Here is a complete example in the MeetingJitsi plugin

INSERT INTO `plugin` ( `plgn_Name`, `plgn_Description`, `plgn_Category`, `plgn_image`, `plgn_installation_path`, `plgn_activ`, `plgn_version`, `plgn_prefix`, `plgn_position`)
VALUES ('MeetingJitsi', 'Plugin for jitsi Meeting', 'Meeting', NULL, '', '0', '1.0', 'jm_', 'after_category_menu');

To create additional menu bar entries in the plugin_menu_bar table, we must

  • set the name of the plugin in plgn_mb_plugin_name for example to MeetingJitsi.
  • The name of the menu item: plgn_mb_plugin_Display_name to ``Settings'' for example
  • the url plgn_mb_url to for example v2/meeting/dashboard
  • the icon plgn_bm_icon at fas fa-cogs
  • Then a security option plgn_bm_grp_sec to the possible values of roles defined in the crm, for example usr_admin
usr_AddRecords,
usr_EditRecords,
usr_DeleteRecords,
usr_ShowCart,
usr_ShowMap,
usr_EDrive,
usr_MenuOptions,
usr_ManageGroups,
usr_ManageCalendarResources,
usr_HtmlSourceEditor,
usr_Finance,
usr_Notes,
usr_EditSelf,
usr_Canvasser,
usr_Admin,
usr_showMenuQuery,
usr_CanSendEmail,
usr_ExportCSV,
usr_CreateDirectory,
usr_ExportSundaySchoolPDF,
usr_ExportSundaySchoolCSV,
usr_MainDashboard,
usr_SeePrivacyData,
usr_MailChimp,
usr_GDRP_DPO,
usr_PastoralCare

Here is a complete example

-- insert the menu item
-- the first one is the main menu !!!
INSERT INTO `plugin_menu_bar` (`plgn_mb_plugin_name`, `plgn_mb_plugin_Display_name`, `plgn_mb_url`, `plgn_bm_icon`, `plgn_bm_grp_sec`) VALUES
('MeetingJitsi', 'Jitsi', 'v2/meeting/dashboard', 'fas fa-video', ''),
('MeetingJitsi', 'Dashboard', 'v2/meeting/dashboard', 'fas fa-tachometer-alt', ''),
('MeetingJitsi', 'Settings', 'v2/meeting/settings', 'fas fa-cogs', 'usr_admin');

2. Attention, it must follow the following recommendations

  • You can set the place and in the menu or after the menu (type seen above)
  • put the css in : skin/css
  • put the js in : skin/js
  • for the api in api/plgnapi.php (you have to put it in, it secures the CRM)
  • for the php code of the views, it is better to put it in v2/templates/
  • If you want to use the MVC design pattern for the views, v2route.php is ready in v2/routes/
  • for your personal classes you can go in core/
  • for propel classes and models everything is in core/model
  • etc ...

3. Be careful with the autoload for propel or personal classes:

// we've to load the model to make sure the plugin will work
spl_autoload_register(function ($className) {
    include_once str_replace(array('Plugins\Service', '\'), array(__DIR__.'/../../core/Service', '/'), $className) . '.php';
    include_once str_replace(array('PluginStore', '\\'), array(__DIR__.'/../../core/model', '/'), $className) . '.php';
});

4. For menus

  • For menu management in the case of a classic plugin, fixed menus can be injected via the database, see the example of the jitsimeeting plugin: install.sql, see above, sql entries: plugin_menu_bar.

  • for menu link management (in the dynamic case: you create menus dynamically) correlated to a base menu, here's an example code :

....

        // we set the new menu bar link
        $menuBarLink = new PluginMenuBar();
        $menuBarLink->setURL($event->getLink());
        $menuBarLink->setName('EventWorkflow');
        $menuBarLink->setDisplayName(InputUtils::FilterHTML($name));
        $menuBarLink->setIcon('');
        $menuBarLink->setLinkParentId(($type == 'one day')?$masterSeveralDay->getId():$masterOneDay->getId());
        $menuBarLink->save();
        // end of the menu link

....

Creating a dashboard plugin

1. For the injection at the database level in the "plugin" table

'widget'

In the database Put the plugin, we must set

  • plgn_Category to Dashboard.
  • plgn_default_orientation to widget if you want to have a widget (the little square in the top main dashboard)
  • a description plgn_Description to ``Plugin to show the current connected users
  • a version plgn_version to '1.0' for example
  • the prefix type for the plgn_prefix entries to cud_.
  • the position at plgn_default_orientation at top, left, center, right
  • the color of the card's bar plgn_default_color bg-gradient-blue text-white, bg-gradient-indigo text-white, .... (see for this the database)
  • the security part is very important plgn_securities to those possible values which are in src\EcclesiaCRM\model\User.php
abstract class SecurityOptions
{
    const bNoDashBordItem = 0;
    const bAdmin = 1; // bit 0
    const bPastoralCare = 2;// bit 1
    const bMailChimp = 4;// bit 2
    const bGdrpDpo = 8;// bit 3
    const bMainDashboard = 16;// bit 4 is now deprecated
    const bSeePrivacyData = 32;// bit 5
    const bAddRecords = 64;// bit 6
    const bEditRecords = 128;// bit 7
    const bDeleteRecords = 256;// bit 8
    const bMenuOptions = 512;// bit 9
    const bManageGroups = 1024;// bit 10
    const bFinance = 2048;// bit 11
    const bNotes = 4096;// bit 12
    const bCanvasser = 8192;// bit 13
    const bEditSelf = 16384;// bit 14
    const bShowCart = 32768;// bit 15
    const bShowMap = 65536;// bit 16
    const bEDrive = 131072;// bit 17
    const bShowMenuQuery = 262144; // bit 18
    const bSundaySchool = 524288; // bit 19
    const bDonationFund = 1048576; // bit 20

    const bDashBoardUser = 1073741824; // bit 30
}

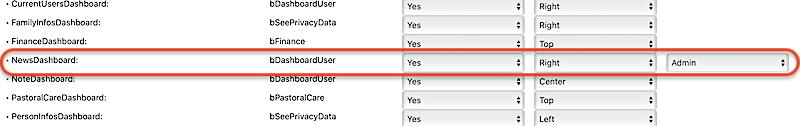

  • Optional side: plgn_UserRole_Dashboard_Availability which can be set to 1 (this will allow user to be administrator in the case of the News dashboard only few people can enter the news, the others will be simply readers).

Screenshot

Here is an example

INSERT INTO `plugin` ( `plgn_Name`, `plgn_Description`, `plgn_Category`, `plgn_image`, `plgn_installation_path`, `plgn_activ`, `plgn_version`, `plgn_prefix`, `plgn_position`, `plgn_default_orientation`, `plgn_default_color`, `plgn_securities`)
VALUES ('CurrentUsersDashboard', 'Plugin to show the current connected users', 'Dashboard', NULL, '', '1', '1.0', 'cud_', 'inside_category_menu', 'right', 'bg-gradient-green text-white', 1073741824);

2. about the code

  • There is only one view in : v2/template/View.php
  • set correctly the card ..... In the code of the View.php
<?php
use EcclesiaCRM\PluginQuery;
use EcclesiaCRM\PluginUserRoleQuery;
use EcclesiaCRM\Map\PluginUserRoleTableMap;

....

// we've to load the model make the plugin to work
// for example if you've a model for your propel orm version + a class service

spl_autoload_register(function ($className) {
    include_once str_replace(array('PluginStore', '\\'), array(__DIR__.'/../../core/model', '/'), $className) . '.php';
    include_once str_replace(array('Plugins\\Service', '\\'), array(__DIR__.'/../../core/Service', '/'), $className) . '.php';
});

use .....

....

$plugin = PluginQuery::create()
    ->usePluginUserRoleQuery()
        ->addAsColumn('PlgnColor', PluginUserRoleTableMap::COL_PLGN_USR_RL_COLOR)
    ->endUse()
    ->findOneById($PluginId);

..... .... Your code
?>

<div class="card <?= $plugin->getName() ?> <?= $Card_collapsed ?>" style="position: relative; left: 0px; top: 0px;" data-name="<?= $plugin->getName() ?>">
    <div class="card-header border-0 ui-sortable-handle">
        <h5 class="card-title"><i class="fas fa-newspaper"></i> <?= dgettext("messages-NewsDashboard","News") ?></h5>
        <div class="card-tools">
            <button type="button" class="btn btn-default btn-sm" data-card-widget="remove">
                <i class="fas fa-times"></i>
            </button>
            <button type="button" class="btn btn-default btn-sm" data-card-widget="collapse" title="Collapse">
                <i class="fas <?= $Card_collapsed_button?>"></i>
            </button>
        </div>
    </div>
    <div class="card-body" style="<?= $Card_body ?>;padding: .15rem;">

         .... Your code

    </div>
</div

3. Attention

  • pour les dashboard plugins, le code js est chargé dans le footer
  • le css est également chargé pour vous par le CRM.
  • le code css est chargé automatiquement dans le header !!!!

Cela évite des chargements sales en plein milieu du code.

Final recommendations for both types of plugins

0. VERY IMPORTANT

For templates and JS/CSS code to work properly

  • The plugin folder must have the same name as the plugin name (this is what plugin management and integration is all about).
  • In the case of the JitsiMeeting view controler, note that in PhpRenderer we have: SystemURLs::getDocumentRoot().'/Plugins/MeetingJitsi/... if the name differs, the templates and JS/CSS code will not load.
    public function renderDashboard (ServerRequest $request, Response $response, array $args): Response {
        $renderer = new PhpRenderer(SystemURLs::getDocumentRoot().'/Plugins/MeetingJitsi/v2/templates');

        if ( !( SessionUser::getUser()->isEnableForPlugin('MeetingJitsi') ) ) {
            return $response->withStatus(302)->withHeader('Location', SystemURLs::getRootPath() . /v2/dashboard');
        }

        return $renderer->render($response, 'meetingdashboard.php', $this->argumentDashboard());
    }
  • Everything is done in the plugin manager to ensure that the code loads optimally.

Translated with DeepL.com (free version)

1. For translations

  • For the PHP code: We don't use gettext but with dgettext and an associated domain dgettext("messages-NewsDashboard", "News") and we work with separate po code for each plugin to avoid conflicts.
  • For the JS code: We use i18next.t('News Title', {ns: 'NewsDashboard'}) with the same namespace also.

2. For specialized propel code or classes, the autoload must be done manually

Tip :

  • for plugins, you never have to use composer dump-autoload it will not work when installing the plugin via the plugin manager inside EcclesiaCRM.
  • So you have to work around the problem like this:
// we've to load the model make the plugin to work
spl_autoload_register(function ($className) {
    include_once str_replace(array('Plugins\Service', '\'), array(__DIR__.'/../../core/Service', '/'), $className) . '.php';
    include_once str_replace(array('PluginStore', '\\'), array(__DIR__.'/../../core/model', '/'), $className) . '.php';
});

3. The signatures

The signature of a plugin is created via the tool provided by the CRM : grunt genPluginsSignatures at the root path of your dev env.

Good development of plugins.
